Cross Flow Table The S230 uses powerful backdraft extraction to pull weld fumes up and away from the operator. The...

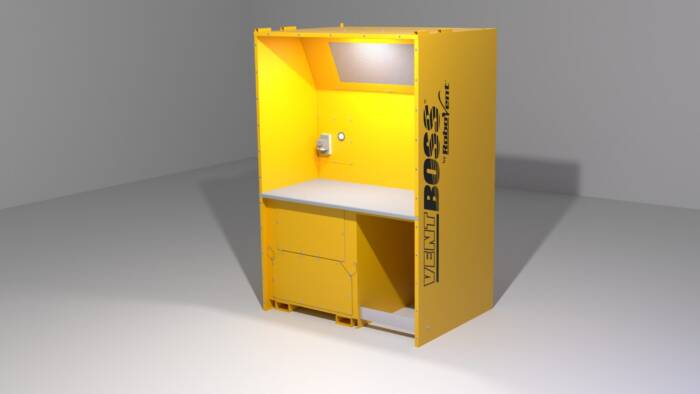

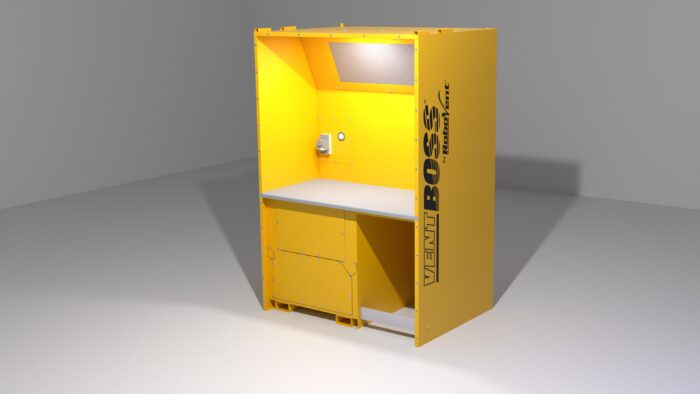

VentBoss Series | S230
Cross Flow Table The S230 uses powerful backdraft extraction to pull weld fumes up and away from the operator. The highly efficient fume extraction makes this our recommended solution for weld schools. It can also be used for light-duty grinding applications.
STANDARD FEATURES: Weld Training Booth, Compressed Air Filter Cleaning, Built-In 2 Layer Spark Arrestance, Back Draft Fume Capture, Full Side Screens, Compressed air Pulse Cleaning System with on board tank, High Performance Blower, Acoustic Silencing, Heavy Duty – All Steel Construction, Suitable for Welding Stainless Steel.
Product dimensions and other info.
Filter Media: Nanofiber Merv 15
Max Air Flow (CFM): 2000
Sound Level (dBA): 72
Input Power: 480V, 3 Phase, 3.4 Amps
Motor HP: 2
Dimensions: 90” high, 60” wide, 44” deep
Application: Manual Welding
Includes: Sheet Steel work surface Fork Pocket Base Minihelic Filter Gauge
Downloadable content related to this product. !!
Download Spec Sheet
VentBoss Line Card
Download Brochure
