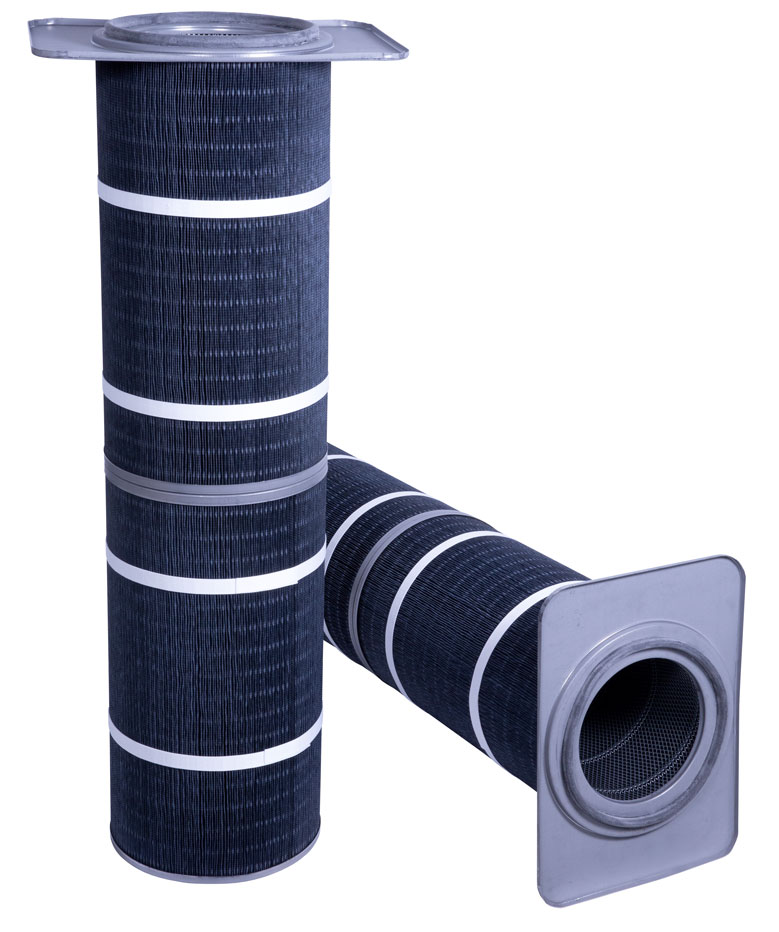

Pleatlock Cartridge Filter | PL-14D52-CC-SF21

Carbon Impregnated media is a proprietary cellulose blended media with a nanofiber surface filtration layer plus antistatic finish with an...

Carbon Impregnated media is a proprietary cellulose blended media with a nanofiber surface filtration layer plus antistatic finish with an initial Minimum Efficient Reporting Value of 15 (MERV 15). The base media is enhanced with a direct-spray nanofiber to promote surface loading during operation and dust release during pulse cleaning and it has an electrically conductive and fire retardant finish. RoboVent’ s PleatLock technology has been engineered to provide more filter media within the cartridge for extended filter life and reduced maintenance. The media captures 85% to 94% of particles in the 0.3 to 1.0 micron range, making it suitable for many general industry applications, including plastics, PVC, combustible dusts or any dust particulate holding a static charge. This media helps reduces static charges inherent to dust generating processes that may allow dust to cling to filter media and helps reduce the risk of deflagration due to static charges of combustible dusts.

PleatLock filters are high-performance cartridge filters with excellent filtration efficiency, performance and longevity. The innovative pleat design results in 35% more filter media per inch for a more compact filter and an overall smaller dust collection system. Dimples in the pleats allow for better airflow and lower pressure drop for enhanced performance and energy efficiency

Base Media: Cellulose/Carbon Blend

Pulse Layer: Nanofiber

Max. Temperature: 180°F

Max. Humidity: 95%

ASHRAE Efficiency: MERV 15*

End Cap: Galvanized Steel

* Note: MERV estimated on clean filter only. Assumes this is minimum.

Product dimensions and other info.


Media Sq. Ft.: 480
Length: 51.89
SF Size (in): 15x21
Outer Diameter (in): 13.95
Inner Diameter (in): 9.56
End Cap Configuration: SQUARE/CLOSED
