How Antispatter Impacts Your Dust Collection System

Antispatter is a staple in many stamping and metalworking operations, providing essential protection for parts, tooling and equipment. While it plays a critical role in improving product quality and extending tooling life, antispatter can pose significant challenges for dust collection systems. If you use antispatter in your processes, here’s what you should know.

What Is Anti-spatter?

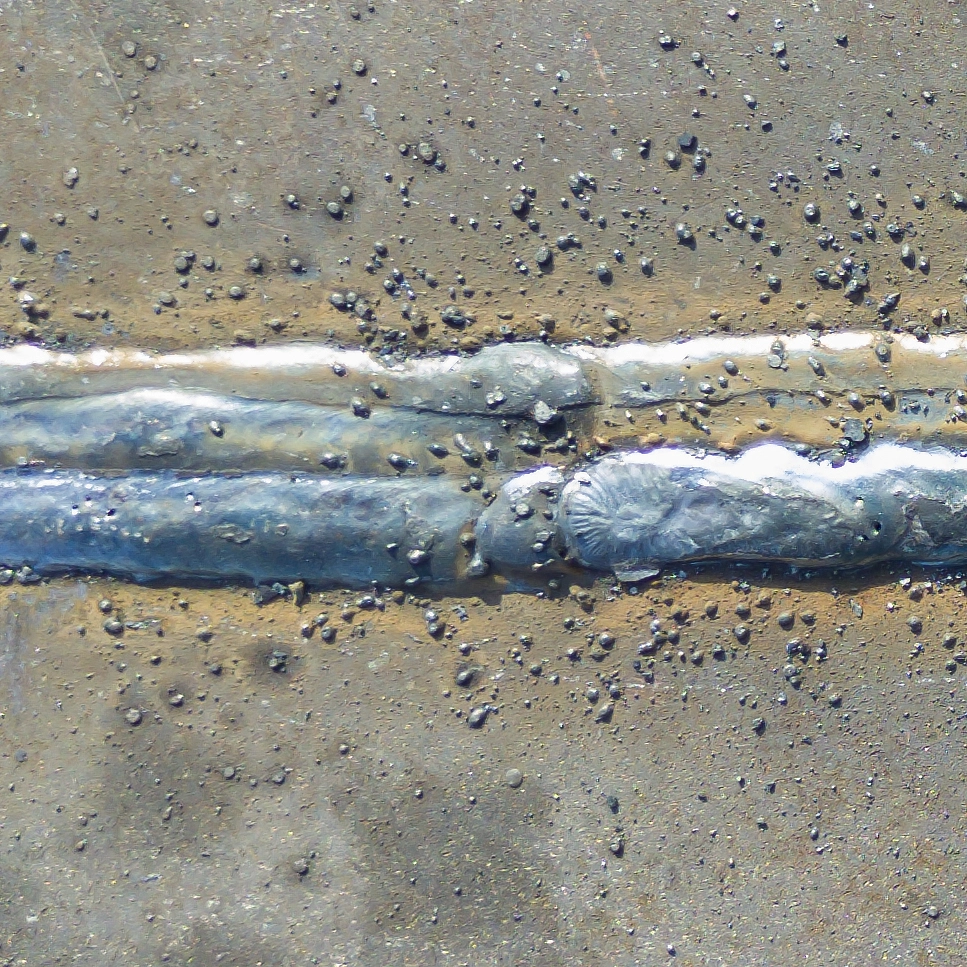

Antispatter is a specialized substance designed to prevent molten metal spatter, generated during welding and other high-heat processes, from adhering to surfaces. It is commonly used in stamping and metalworking operations to protect tooling, workpieces and equipment from damage and contamination. Available as sprays, liquids or coatings, antispatter forms a temporary barrier on surfaces, making it easy to clean spatter off metallic surfaces.

Antispatter formulations vary depending on their intended use, but they usually include an oil or water base with other components, including polymers or silicones, surfactants, corrosion inhibitors, and various other additives and solvents. Water-based formulations are typically 80-90% water, along with ingredients such as sodium carbonate, sodium sulfonate, glycol, cocamide and diethanolamine.

Antispatter provides many benefits in metalworking operations.

• Tooling Protection: Prevents molten metal from sticking to tools (including weld torches), reducing wear and prolonging their lifespan.
• Improved Product Quality: Keeps spatter off workpieces, ensuring a cleaner finish and reducing the need for secondary operations.
• Reduced Downtime: Simplifies cleaning processes, minimizing production delays caused by spatter buildup.
• Cost Savings: Extends the life of expensive equipment and tooling by reducing spatter-related damage.

How Antispatter Is Used and Applied

Antispatter is a versatile product used in stamping, welding and metalworking operations to protect tooling, workpieces and equipment from molten spatter and residue. It is commonly used in welding to protect the weld torch and nozzles, tips and clamps and prevent molten spatter from fouling welding equipment.

Its application methods vary depending on the operational needs and the type of antispatter being used. Common methods of application include:

• Spraying: Antispatter is applied as a fine mist over surfaces using spray bottles or automated spray systems to cover large areas quickly.
• Dipping (bowl method): The weld torch is dipped directly into a container of antispatter.
• Brushing or rolling: Antispatter is applied with a brush or roller for precision coating of specific areas or smaller surfaces.

Spraying is a common method due to its speed and efficiency. However, overspray can become a significant problem. Antispatter overspray mixes with weld fumes and fine metalworking dusts in a complex mixture that is difficult to filter effectively.

How Antispatter Impacts the Dust Collection System

Antispatter fluids are essential in many metalworking applications, but they can wreak havoc on your dust collection system and filters. Fine particles from antispatter sprays can become aerosolized and enter the dust collection system, where they mix with metalworking dust and fumes. This mixture of wet or sticky dust can quickly saturate filters, reducing system performance, lowering filter life and requiring more frequent maintenance.

For water-based antispatter formulations, moisture saturation is the biggest issue. These sprays introduce moisture into the dust collection system. When filters absorb this moisture, their fibers expand, leading to reduced airflow and possible structural damage, especially in cellulose-based filters. Wet filters are prone to clogging and can fail prematurely during pulse-cleaning cycles. Oil- and silicone-based formulations introduce other issues, including sticky residues that clog filters prematurely.

Antispatter in the dust collection system creates numerous challenges, including:

• • Media saturation
  • Damage to filter media (especially cellulose filters)
  • Filter clogging and reduced airflow

• High pressure drop and excess energy consumption
• Premature filter failure

Countering Antispatter in the Dust Collection System

If you use antispatter in your operations, it is important to take that into consideration for dust collection system design. Fortunately, there are steps you can take to mitigate antispatter overspray and minimize the impact on your dust collection system and filters.

Antispatter Reduction

Effectively managing antispatter begins with preventing it from entering the dust collection system. Preventing antispatter from becoming airborne is a key strategy for protecting dust collection systems. Two effective methods for reducing the amount of antispatter reaching the air are containment systems and alternative application techniques like dipping the torch tip into a bowl.

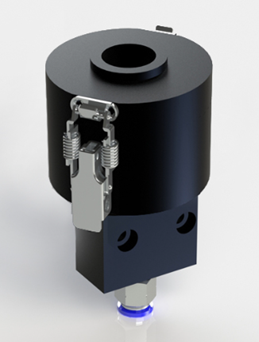

• Antispatter Containment Systems: Containment systems, such as shields or localized enclosures, are designed to confine the application of antispatter to a controlled area. These systems prevent mist and overspray from dispersing into the workspace, reducing the volume of airborne particles that can enter the dust collection system. Containment systems are ideal for high-volume or automated operations where antispatter is applied consistently. It is important to make sure the weld torch is completely enclosed in the containment system during antispatter application.
• Alternate Application Methods: For smaller-scale or precision applications, manual techniques like dipping the weld torch tip directly into the antispatter (e.g., bowl method) can be highly effective. Instead of spraying antispatter into the air, these methods involve submerging or coating the torch tip directly in a container of antispatter solution. This eliminates overspray entirely, significantly reducing the risk of airborne particles. Pre-filtration systems are an effective line of defense against contaminants introduced by antispatter. They capture larger particles, aerosols and droplets before these contaminants reach the primary filters. The three main types of pre-filtration systems include baffles, wire mesh screens and roughing filters. Each of these pre-filtration methods can be used individually or in combination, depending on the specific needs of the operation.
• Baffles are simple deflectors installed upstream of the filters that change the direction of airflow. The sudden change causes heavier particles and droplets to settle out of the airstream, reducing the load on downstream filters. Baffles can be very helpful for controlling overspray and fine mists.
• Wire mesh screens provide a physical barrier to intercept larger particles and sticky droplets. They are durable, easy to clean, and effective at trapping aerosols before they reach the filters. Wire mesh is particularly beneficial in high-dust-load environments where sticky residues could overwhelm finer filter media. They also help in spark control.
• Roughing filters are coarse filters designed to capture large particulates and aerosols while allowing finer particles to pass through to the main filters. Roughing filters provide an additional layer of filtration and are often disposable, simplifying maintenance. They are ideal for operations with heavy contamination, reducing wear on primary filters.

Air-to-Cloth Ratio

Ensuring the proper air-to-cloth ratio is crucial for managing the dust load and preventing overburdened filters. Increasing the amount of filter media relative to the system’s airflow (i.e., lowering air-to-cloth ratio) reduces strain on filters and improves the capture of sticky residues. Lower air-to-cloth ratios are particularly effective in environments with high moisture or fine particulate levels, such as those generated by antispatter sprays. This adjustment helps maintain consistent airflow and reduces pressure drop.

Filter Media Selection

Filters made from spunbond polyester with oleophobic (oil-repellent) and hydrophobic (water-repellent) coatings are ideal for managing the sticky residues and moisture from antispatter. Polyester or blended filters can stand up to moisture saturation better than cellulose filters, which are prone to tearing and degradation when wet. Polyester also absorbs less moisture than cellulose. Selecting the right filter media ensures better performance, easier cleaning during pulse cycles, and longer filter life in challenging environments.

Pre-Coat

Applying a filter pre-coat material, such as expanded perlite, is an effective way to mitigate the impact of sticky residues and fine particulates, including those generated by antispatter sprays. Pre-coat materials form a thin, porous layer on the surface of filter media, creating a barrier that traps contaminants before they can embed into the filter fibers. Pre-coating simplifies cleaning, reduces pressure drop, and extends filter life. It’s particularly effective in operations with heavy antispatter use or fine, sticky particulates.
