COMMERCIAL & INDUSTRIAL AIR PURIFIER | PRC SERIES BY ROBOVENT
IMPROVE AIR QUALITY AND HELP MAINTAIN SAFER, CLEANER INDOOR ENVIRONMENTS
When equipped with a HEPA Filter, the PRC from RoboVent will remove 99.97% of particles larger than .3 microns. ASHRAE Standard 62.1 “Ventilation for Acceptable Indoor Air Quality” recommends meeting or exceeding the air change rates with a MERV13 filter. The PRC comes standard with a MERV15 filter to help enhance your existing ventilation system with better air filtration and can be upgraded to HEPA level filtration for additional peace of mind. This simple unit can be wheeled around to give any space better indoor air quality keeping customers, employees and patrons safer. Just plug it in to start breathing cleaner air to help prevent the spread of COVID-19 and other harmful viruses and bacteria.
Use the calculator below to determine your preferred air turnover rate.
- Captures sub-micron particles like airborne viruses, bacteria and mold spores
- including pet dander, pollen, dust & smoke
- Provides cleaner indoor air more free of particulate
- Reduces odors (with carbon pre-filter)
- Simple plug & play unit, 110v
- Standard Colors: RoboVent Blue, VentBoss Yellow and White

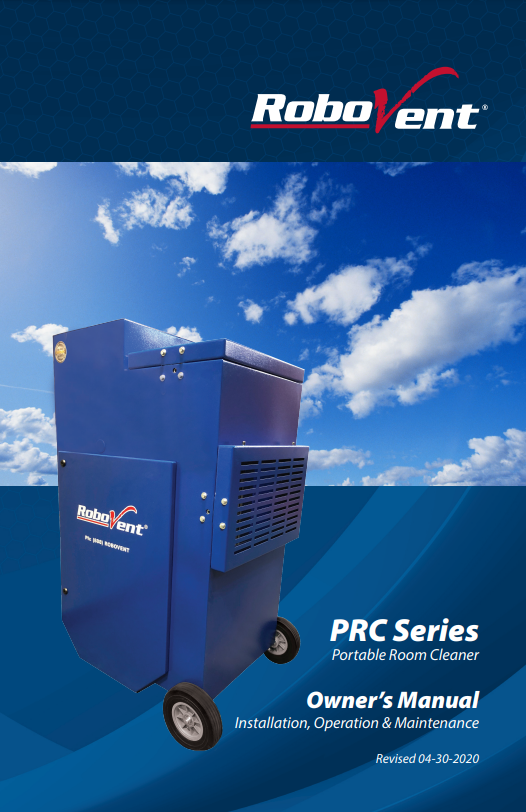

Owner's Manual
Spec Sheets
AVAILABLE MODELS
PRC-1200
Recommended for spaces up to 2,500 cubic feet.
Full specs at bottom of page.
PRC-800
Recommended for spaces up to 1,667 cubic feet.
Full specs at bottom of page.

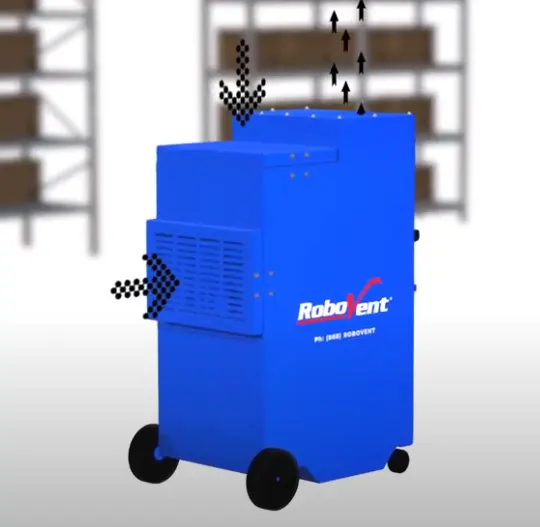

HOW IT WORKS
HEAVY DUTY CONSTRUCTION: Heavy 12 and 16-guage, fully welded steel construction with durable powdercoat finish, backed by our quality-built guarantee.
“EASY LOAD” FILTER SYSTEM: Top-load filter system allows filters to be removed in seconds. Vertical filter design enables dust to be shed more easily, extending filter life.
DUAL FILTRATION SYSTEM: Air passes through a two-stage filtration system, with a MERV 8 carbon prefilter to remove larger contaminants and odor and a MERV 15 or HEPA filter to remove smaller contaminants.
BUILT-IN ACOUSTICAL SOUND PLENUM: High-density foam barriers and built-in acoustical bass traps are engineered for quiet operation—just 70 dBA!
HIGH PERFORMANCE BLOWER: The aluminum Acoustafoil blower (inside) is the heart of the RoboVent PRC. This high-performance blower is engineered for high output air volume.
LOCKING WHEELS: Two-stage locking castor wheels lock unit in all four directions.
THE FILTER MEDIA
Air will flow through two stages of air filtration before exhausting into the room. The PRC comes standard with a MERV 8, carbon pre-filter and has three options for interior cartridge filter media, choose the best for your application:
- Nanofiber, MERV15; 254 sq. ft. Media Area
- HEPA E11; 170 sq. ft. Media Area (Comparable to N95 mask media)
- HEPA H13; 170 sq. ft. Media Area (Comparable to P100 mask media)
WHAT AM I FILTERING?
The type of particulate we capture in air filtration systems is often driven by the actual media being used inside the filtration system. It’s important to know the make-up of the particle, it’s relationship with airflow patterns in terms of how the air conveys the particle and the micron size.
TYPICAL ENVIRONMENTS
The PRC is suitable for any indoor setting and typically used in commercial and light industrial settings as a supplemental, portable system to existing HVAC filtration systems. When the volume of space exceeds 2,500 cu ft, we recommend multiple units or perhaps considering a larger, more centralized system.
Example Areas may include but not be limited to:
Assisted Living Facilities | Churches | Convenience Stores | Control Panel Rooms | Fire Stations | Food Prep Areas & Kitchens | Grocery Stores | Gyms | Laboratories | Laundry Facilities | Light Assembly Areas | Marijuana Dispensary & Cannabis Operations | Municipal Buildings | Nursing Facilities | Operating Rooms | Packaging Areas | Patient Receiving & Discharge Spaces | Police Stations | Physical Therapy Clinics | Print Shops | Prisons & Jails | Repair Shops | Shipping Areas | Waiting Rooms | Warehouses | Workshops | Worship Centers
HOW OFTEN SHOULD I RECIRCULATE THE AIR IN THE ROOM?
If the return air from the purifier does not need to be exhausted outside, such as in an emergency room setting or a triage area, it could be based on user preference. Do you want to refresh the air 1x per hour? 100x per hour? It’s really up to you. Use the calculator below to make your determination.
Enter your room dimensions below to see how many changes per hour a single PRC unit. You can also just enter a total room volume if you don’t have specific dimensions.
If for some reason the calculator above isn’t working, don’t fret. The following calculation gives you an idea of the refresh rate a single RoboVent PRC can provide:
- Room Height x Room Length x Room Width = Room Volume
- RoboVent PRC = 1200 CFM or 800 CFM
- Room Volume ÷ CFM = number of minutes per room change
- 60 minutes ÷ number of minutes per room change = Room Change per Hour
NEED CLEAN AIR FAST?
The PRC can be ready to ship in one week from the time the order is entered in our system.
Actual delivery date will be driven by number of units purchased and specific shipping location(s).
Additional Acoustical Attenuation
Mounted atop your dust collector, this device quiets the air being discharged from the unit using ca...
Dust Tray
Perfect when height is a concern, the easy-to-use dust tray slides out to allow for dust removal....
Snap-Lock Filter Clamp
Built with a gusseted support structure, RoboVent's double-rail clamping mechanism provides an ...
Vertical Filter Design
RoboVent's vertical filters are designed to shed dust into the containment system far more effi...
PRC SPECIFICATIONS
PRC-1200
| Capacity: | 1200 CFM |
| Motor: | 1.5 HP, Direct Drive |
| Voltage: | Single phase, 110V, 60Hz |
| Full Load Amps: | 20.0 |
| Blower: | Reverse inclined high performance blower wheel |
| Sound Level: | 71 dBA |
| Silencing: | Integral acoustical plenum with low frequency dampening |
| Controls: | Manual on/off switch, minihelic filter conditon gauge |
| Cabinet Dimensions: | 53" H x 23" L x 31" D |
| Shipping Weight: | 350 lbs. |
| Carbon Pre-Filter: | 2" x 20" x 24" MERV 8 |
| Primary Filter Options: | Nanofiber, MERV 15; 254 sq. ft. Media Area HEPA E11; 170 sq. ft. Media Area (>95% Efficiency, comparable to N95 mask) HEPA H13; 170 sq. ft. Media Area (>99.95% Efficiency, comparable to P100 mask) |
| Options: | CSA Certification - CSA-100 |
PRC-800
| Capacity: | 800 CFM |
| Motor: | .75 HP, Direct Drive |
| Voltage: | Single phase, 110V, 60Hz |
| Full Load Amps: | 13.8 |
| Blower: | Reverse inclined high performance blower wheel |
| Sound Level: | 67 dBA |
| Silencing: | Integral acoustical plenum with low frequency dampening |
| Controls: | Manual on/off switch, minihelic filter conditon gauge |
| Cabinet Dimensions: | 36" H x 20" L x 39" D |
| Shipping Weight: | 275 lbs. |
| Carbon Pre-Filter: | 2" x 20" x 24" MERV 8 |
| Primary Filter Options: | Nanofiber, MERV 15; 254 sq. ft. Media Area HEPA E11; 170 sq. ft. Media Area (>95% Efficiency, comparable to N95 mask) HEPA H13; 170 sq. ft. Media Area (>99.95% Efficiency, comparable to P100 mask) |
| Options: | CSA Certification - CSA-100 |
