FLEXPRO™ HI-VAC SERIES - Weld Fume Extractor
HI-VAC FILTRATION SYSTEMS FOR MANUAL AND ROBOTIC WELDING APPLICATIONS
The RoboVent FlexPro™ Hi-Vac smoke-collection system is a versatile, simple and powerful solution for welding smoke extraction. Suitable for both manual and robotic welding applications, FlexPro is designed to eliminate the need for backdraft hoods and large ductwork.
The FlexPro Hi-Vac air filtration system collects fumes right at the source. It's the perfect companion to the RoboVent Fume Gun. It can also be used with suction tubes mounted to your fixture or welding table—or, in the case of large metal structures or vessels, directly to the weldment itself.
FlexPro is designed for plug-and-work use: simply attach your hi-vac suction tube, connect to a power source and start collecting weld fumes.
Hi-Vac Capture Solutions Brochure

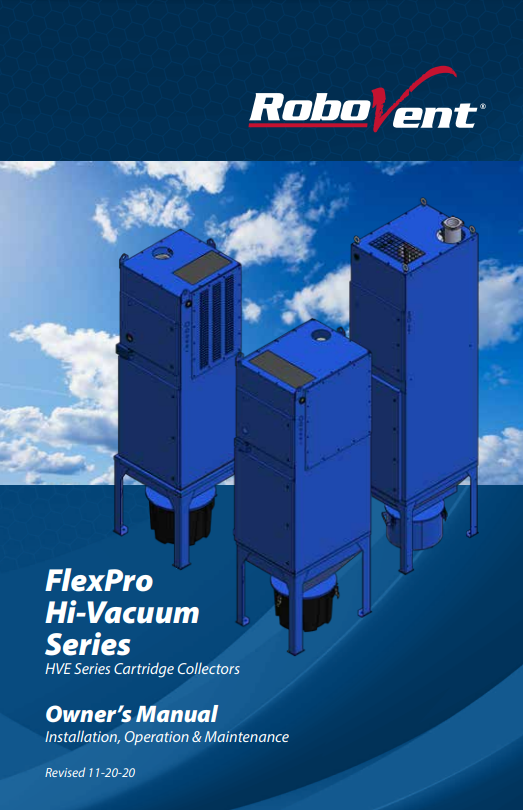

Owner’s Manual
Spec Sheets
MANUAL WELDING HI-VAC APPLICATIONS:
- Ship building and repairs
- Tank building and repairs
- Large pipe welding
- Large weldments
- Applications that require extensive crane use
- Stainless steel welding
- Any application where a welder is overexposed to harmful welding fumes
ROBOTIC WELDING APPLICATIONS:
- Many robotic welding applications
- Applications requiring extensive overhead crane use
- Large cells with multiple robots
- Assembly lines
HOW IT WORKS
EASY ePAD™ CONTROLS: A simple, integrated control system puts collector controls at your fingertips. Motor starter, overload and disconnect are all included in the control system. Installation is simple and fast–just connect to power!
AUTOMATIC FILTER CLEANING SYSTEM: The responsive filter cleaning system uses a pressure differential sensor for automated pulsing when filters become loaded to save energy and increase filter life. Includes sensor, pulse solenoid valve, nozzle and air tank.
BLOWER INLET PRESSURE RELEASE VALVE: Prevents harmful overpressure developing at the blower if flow becomes obstructed, preventing damage to the blower.
HEAVY DUTY CONSTRUCTION: Fully welded 7 & 11 gauge steel, Polyester powder coat inside & out, enhances plant aesthetics & provides excellent equipment durability.
HDH HOPPER: All-in-one hopper & duct inlet with dropout feature to protect filters from larger debris. 20-gallon containment.
VERTICAL FILTER DESIGN: Filters load evenly and easily shed dust right into the containment area, increasing media usage, effectiveness & filter life.
EXHAUST SILENCING: Blower muffler minimizes generated noise & increases operator comfort (~10 to 15 dBA sound level reduction).
eDRIVE™: Built-in VFD adjusts to compensate for filter loading, saving energy and reducing wear-and-tear on your system.

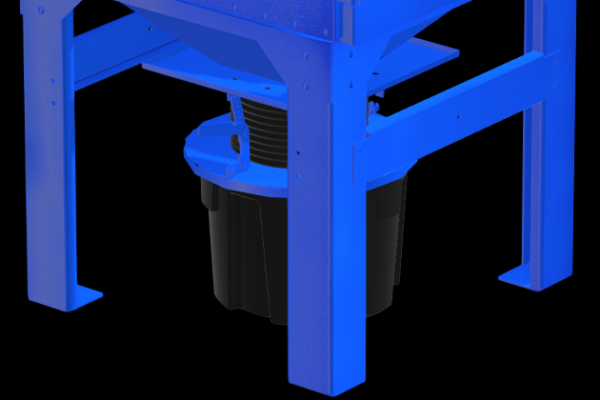

20-Gallon Drum
Captures up to twice the dust of the standard dust tray while reducing maintenance time. Suggested f...
Advanced Filter Pulsing System
The RoboVent Advanced Filter Pulsing System uses a proprietary pulse cone technology that distribute...
eDrive™ Automatic VFD
Constantly monitoring airflow, the eDrive automatically changes motor RPM to adjust for filter loadi...
Snap-Lock Filter Clamp
Built with a gusseted support structure, RoboVent's double-rail clamping mechanism provides an ...
Vertical Filter Design
RoboVent's vertical filters are designed to shed dust into the containment system far more effi...

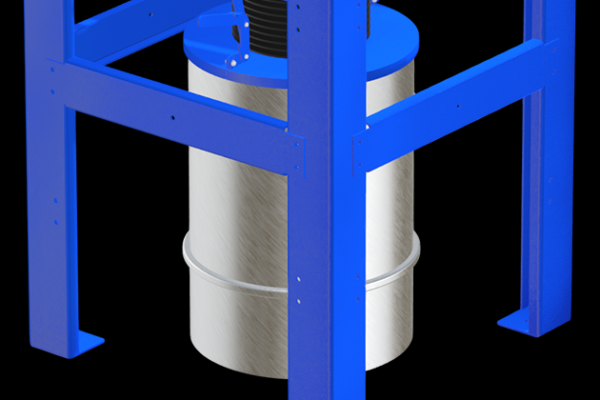

55-Gallon Drum
Captures up to three times the dust of the standard dust tray while reducing your maintenance time. ...

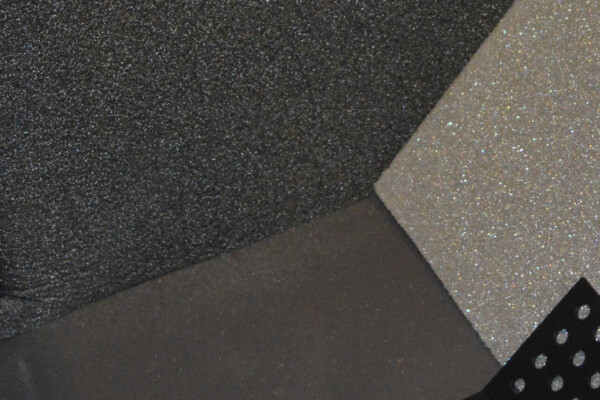

Additional Acoustical Attenuation
Mounted atop your dust collector, this device quiets the air being discharged from the unit using ca...
AutoSaver™ Power Usage Sensor
Mounted directly into your control panel, the AutoSaver feature turns your RoboVent system on during...

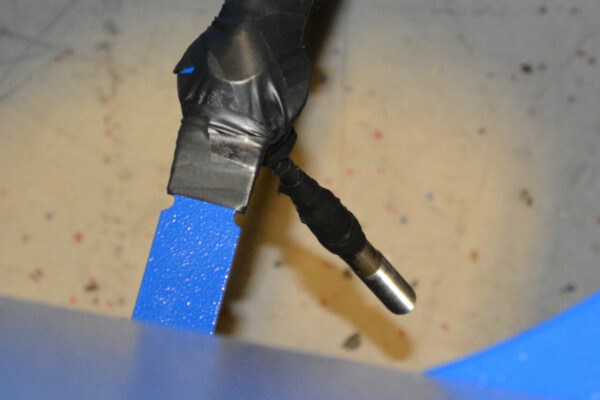

Barrel Level Sensor
This sensor alerts operators when the containment system is full and ready to be emptied. This eases...
Delta3™ Inline Spark Arrestor
Sparks are a natural byproduct of welding, grinding and metal cutting-but if they are left uncontrol...

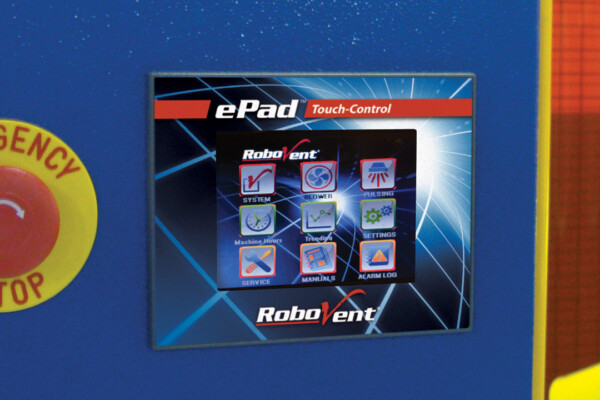

ePad Control System
An easy-to-use touch-screen control panel that allows you to manage your RoboVent collector from a s...
Explosion Vent
Releasing excess pressure in the event of an explosion, the Explosion Vent is designed to direct pre...
Clean Agent Gas Fire Suppression
Activated by heat, the clean agent gas system acts quickly to suppress a fire in the dust collector ...
Dust Collection for Medical Equipment Manufacturing
Topping out at a full $148 billion, the United States remains the largest market for medical devices...
Dust Collection for Shipbuilding
The shipbuilding industry always follows cyclical trends, and today is no different. Commercial ship...
Dust Collection for Transportation Equipment Manufacturing
The market for transportation equipment is complex—trains, subways, buses, commercial vehicles and...
Dust Collection for Military and Defense Equipment Manufacturing
Few industries are presently experiencing uncertainty like military and defense manufacturing. Rapid...
Dust Collection for Oil & Gas Pipeline Equipment Manufacturing
Oil & gas exploration, extraction, refining, storage and distribution is a $1.2 trillion dollar glob...
Dust Collection for Construction Equipment Manufacturing
The 2008 economic crash hit the construction industry hard. Investment dried up, building plans got ...
Fume Collection for Welding Schools
With the current upsurge in domestic manufacturing, demand for welders is strong. Recruiters, howeve...
Dust Collection for Heavy Equipment Manufacturing
Steady global growth in infrastructure construction has kept the heavy equipment industry strong in ...
Robotic Welding Fume Extraction System
SOLUTIONS FOR DUST AND FUMES IN ROBOTIC WELDING RoboVent has been a leader in clean air soluti...
Manual Welding Ventilation Systems
SOLUTIONS FOR MANUAL WELDING FUME EXTRACTION Concerns over weld fumes go beyond the normal h...
Dust and Fume Collection for Laser Welding
SOLUTIONS FOR LASER WELDING FUME AND DUST CONTROL RoboVent offers robust dust and fume control...
Metalworking Dust Collection System
SOLUTIONS FOR METALWORKING DUST Metalworking dust is dangerous, and RoboVent has almost three d...
Fume Collection for Resistance Welding
Think you don’t need dust and fume collection for resistance welding? Think again. Resistance weld...
Welding Fumes Collection
EXPOSURE RISKS FOR WELDING FUMES Weld fumes are a particularly dangerous inhalation risk because...
PAIR WITH A MIG FUME GUN FOR MAXIMUM WELDER PROTECTION
For manual welding, HiVac extraction power pairs well with a fume extraction gun. The xFUME MIG fume gun builds maximum fume extraction power right into the welding torch, so fume control is always exactly where you need it. Designed for MIG/MAG welding processes that employ shielding gases.
- EFFECTIVE: Removes 90-95% of weld fume right at the source.
- LIGHTWEIGHT AND ERGONOMIC: Designed for optimal accessibility and ergonomics to reduce fatigue and ensure a high-quality weld.
- EASY: The fume gun moves with the welder, so there is no need to continually reposition a fume arm to ensure optimal extraction.
- VERSATILE: Great for applications where the welder is highly mobile or when welding large parts or in enclosed spaces where other fume collection methods are not practical.
