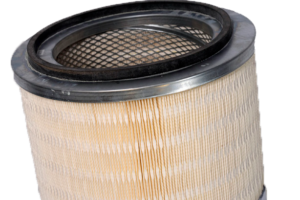

A16 PleatLock Premium Air Filter
Economy Cartridge Air Filter
A16 PleatLock premium filter media is a proprietary cellulose polyester blend with a fire retardant additive and an initial Minimum Efficiency Reporting Value of 16 (MERV16). The base media is enhanced with a direct-spray nanofiber to promote surface loading during operation and dust release during pulse-cleaning.
The media provides the highest filtration efficiency among cellulose polyester blends. RoboVent’s new PleatLock technology has been engineered to outlast even the toughest competitor filter. With added dimples within the pleats, there is up to 35% more media space to capture more particulate, allowing for longer time between filter changes. This saves time and money!
| Item Number | Media Area (ft2) | End Cap Configuration | SF Size (in) | OD (in) | ID (in) | Length (in) |
|---|---|---|---|---|---|---|
| PL-10D12-A16-C | 68 | OPEN/CLOSED | NA | 10.38 | 6 | 12 |
| PL-12D26-A16 | 205 | OPEN/OPEN | NA | 12.75 | 8.38 | 26 |
| PL-12D36-A16-C | 284 | OPEN/CLOSED | NA | 12.75 | 8.38 | 36 |
| PL-14D26-A16 | 233 | OPEN/OPEN | NA | 13.88 | 9.5 | 26 |
| PL-14D26-A16-C | 233 | OPEN/CLOSED | NA | 13.88 | 9.5 | 26 |
| PL-14D26-A16-SF | 233 | SQUARE/CLOSED | 16x16 | 13.88 | 9.5 | 26 |
| PL-14D36-A16 | 322 | OPEN/OPEN | NA | 13.88 | 9.5 | 36 |
| PL-14D36-A16-C | 322 | OPEN/CLOSED | NA | 13.88 | 9.5 | 36 |
| PL-14D36-A16-SF | 322 | SQUARE/CLOSED | 16x16 | 13.88 | 9.5 | 36 |
| PL-14D52-A16-SF | 465 | SQUARE/CLOSED | 16x16 | 13.88 | 9.5 | 52 |
| PL-18D16-A16 | 190 | OPEN/OPEN | NA | 17.38 | 12.63 | 16 |
| PL-18D12-A16-C | 190 | OPEN/CLOSED | NA | 17.38 | 12.63 | 12 |
| PL-22D12-A16 | 202 | OPEN/OPEN | NA | 22.38 | 17.88 | 12 |
| PL-22D14-A16-C | 236 | OPEN/CLOSED | NA | 22.38 | 17.88 | 14 |
| PL-22D36-A16 | 606 | OPEN/OPEN | NA | 22.38 | 17.88 | 36 |
| PL2-14D52-A16-SF | 465 | SQUARE/CLOSED | 17x18 | 13.88 | 9.5 | 52 |
| PL-22D21-A16 | 353 | OPEN/OPEN | NA | 22.38 | 17.88 | 21 |
